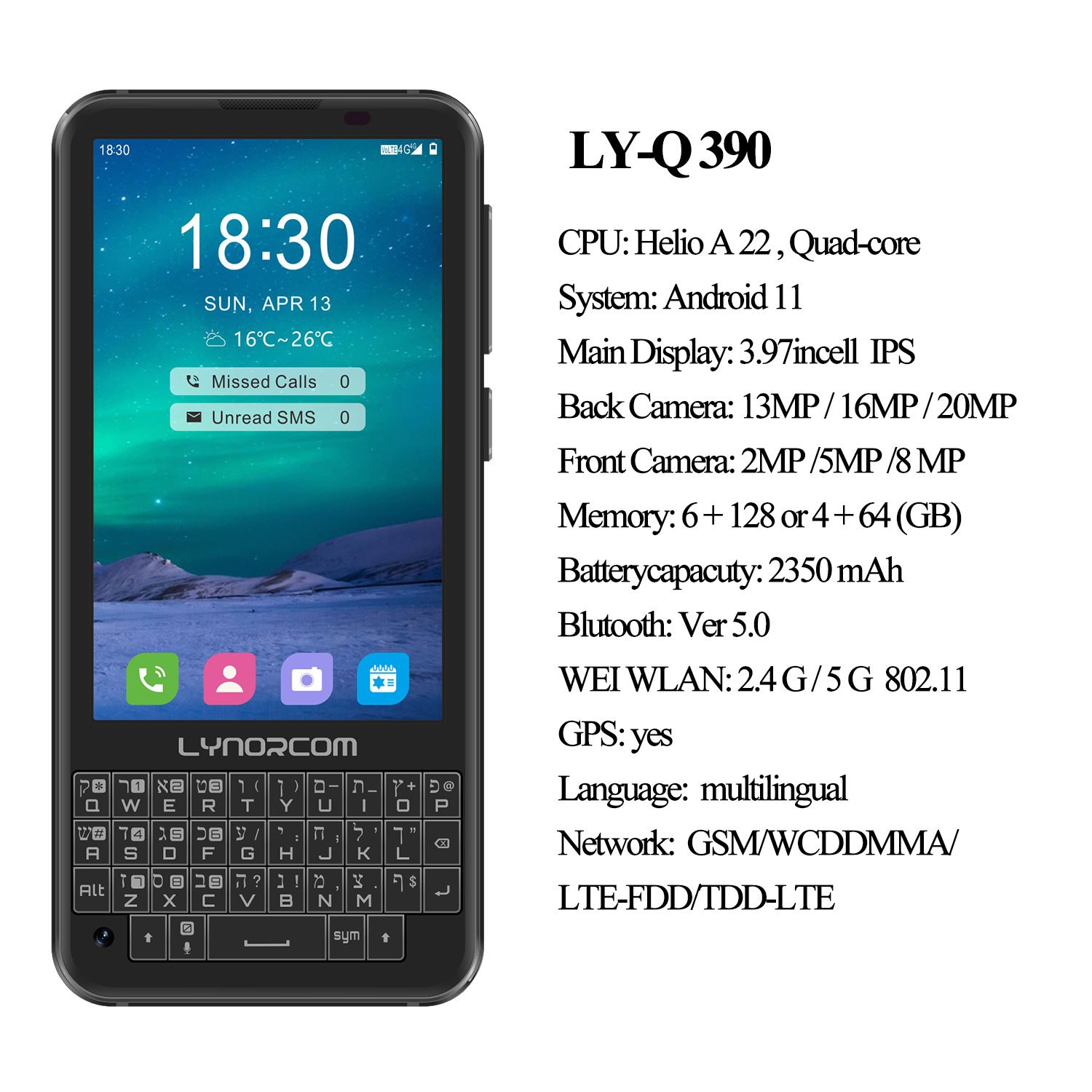

Q390 [OEM & ODM] 4G Dual SIM Full Keyboard Kosher Smartphone Smartphone 6GB+128GB 3.97incell HD Touch Screen, Bluetooth 5.0 8MP+21MP Camera
| Detail Item | Specifications | ||||
| 1. General Feature | |||||
| ◇ Processor | |||||
| * | CPU | MT6761 | |||
| * | GPU | IMG GE8300, 660MHZ | |||
| ◇ Platform | |||||
| * | Operating system | Android 11 | |||
| * | UI Interface | Custom icon | |||
| * | Language | English, German, French, Spanish, Hebrew, etc., multiple languages | |||
| ◇ RF Specification | |||||
| * | Mode | GSM / WCDMA / LTE-FDD / TDD LTE | |||
| * | North American version | GSM: EGS850/DCS1800/PCS1900 WCDMA: B2/B4/B5 FDD:B2/B4/B5/B12/B13/B17/B25/B26/B66/B71 TDD: B40/B41 | |||
| * | Eurasian version | GSM: 850/900/1800/1900 WCDMA: B1/B2/B8 FDD:B1/B2/B3/B7/B8/B20/B28A&B TDD: B38/B39/B40/B41 | |||
| * | SIM card slot | 2 Card slot | |||
| 2. Phone Specification (Hardware) | |||||
| ◇ Display | |||||
| * | Main display dimensions | 3.97 incell IPS | |||
| * | Main display technology | TFT | |||
| * | Main display resolution | 480 x 800 RGB | |||
| * | Main display PPI | 236 | |||
| ◇ Back Camera | |||||
| * | Pixel | 13MP/16MP/20MP/21MP | |||
| * | Camera technology | CMOS | |||
| * | Auto Focus | Yes | |||
| * | Flash light | Yes | |||
| ◇ Front Camera | |||||
| * | Pixel | 2MP/5MP8MP | |||
| * | Camera technology | CMOS | |||
| * | Auto Focus | N/A | |||
| * | Flash light | N/A | |||
| ◇ Storage | |||||
| * | EMCP | 4GB+64GB or 6GB+128GB | |||
| * | Extended Storage | Not Supported | |||
| * | Max memory card size | Not Supported | |||
| ◇ USB | |||||
| * | USB revision | USB2.0 | |||
| * | USB charging | Yes | |||
| * | OTG | Yes | |||
| * | System I/O connector | Type-C | |||
| ◇ Bluetooth | |||||
| * | Bluetooth revision | Ver 5.0 | |||
| ◇ FM | |||||
| * | FM Radio | Yes. | |||
| * | FM Antenna | Through headphone cable | |||
| ◇ WLAN | |||||
| * | WLAN | WLAN 2.4G/5G 802.11 a/b/g/n/ac | |||
| * | WIFI hotspot | Yes | |||
| ◇ GPS | |||||
| * | GPS | Yes, GPS/Glonass/Beidou/Galileo | |||
| * | AGPS | Yes | |||
| ◇ Sensor | |||||
| * | G-Sensor | Yes | |||
| * | Proximity sensor | Yes | |||
| * | Light sensor | Yes | |||
| * | E-Compass | Yes | |||
| * | Gyro Sensor | N/A | |||
| ◇ NFC | |||||
| * | Operating mode | Optional, Default None | |||
| * | NFC antenna | Optional | |||
| * | NFC Application scenarios | N/A | |||
| ◇ Battery | |||||
| * | Battery technology | High-capacity lithium-ion battery | |||
| * | Battery capacity | 4.4V 2350mah | |||
| * | Charging current | Max 1.5A | |||
| * | Charging limit voltage | 4.4V | |||
| ◇ Keypad / Button / Switch / RGB LED | |||||
| * | Power button | Yes, Together with end key | |||
| * | Volume keys | Yes, Side buttons | |||
| * | Keypads | qwerty Keypads | |||
| * | Keypad Back-light color | White lamp | |||
| * | |||||
| ◇ Physical Interface | |||||
| * | Audio jack | Yes, Type-C transfer 3.5mm interface(CTIA) | |||
| * | Charging jack | Type-C | |||
| * | MIC | Yes | |||
| * | Speaker | BOX Speaker | |||
| * | Motor | Yes | |||
| * | Receiver | Yes.Together with Speaker | |||

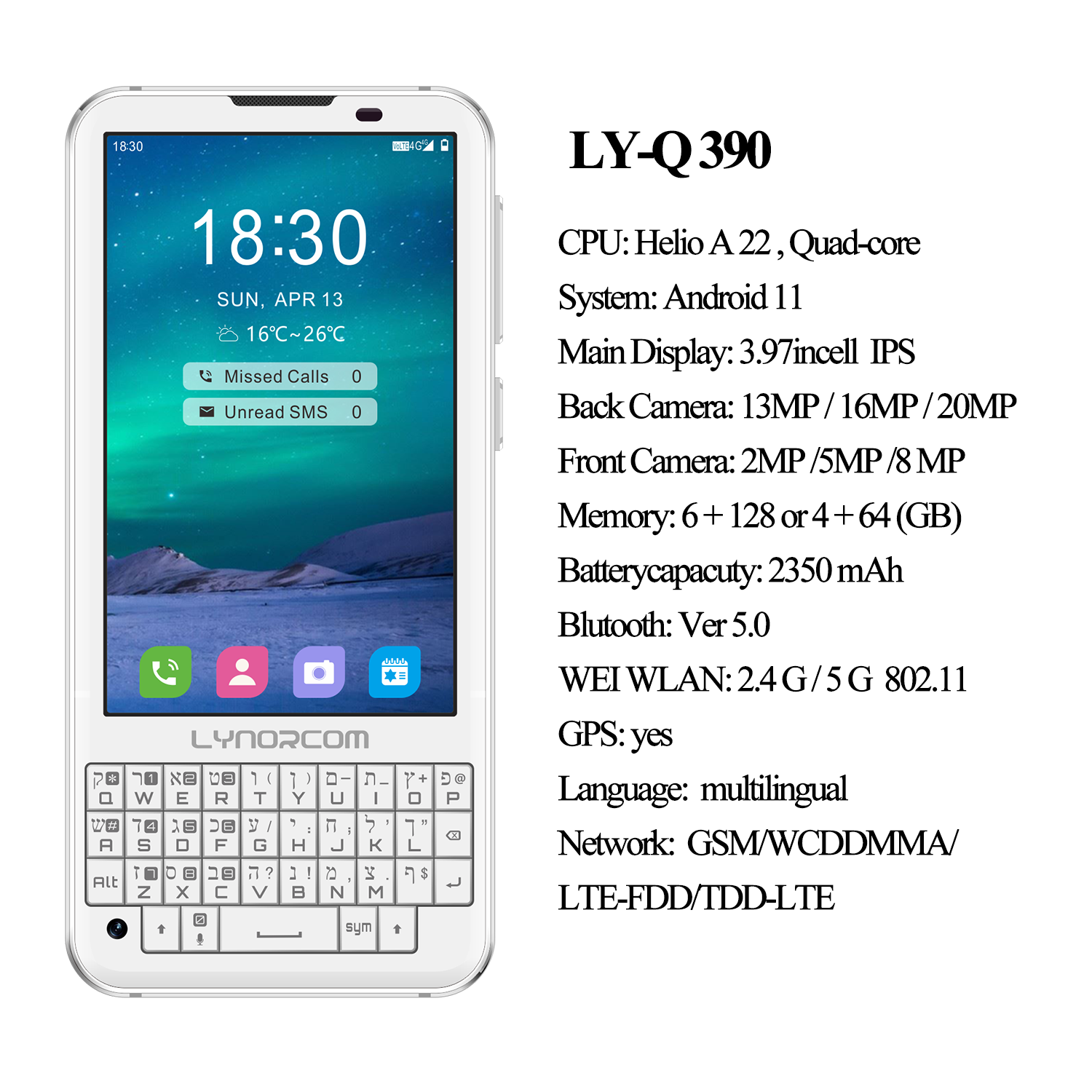

Product hardware specifications:
- CPU: Helio A22 (MT6761), Quad-core ARM® Cortex-A53 MPCore TM operating up to 2.0GHz
- GPU: IMG GE8300, 660MHz
- Android system: Android 11
Language: English, German, French, Spanish, Hebrew, etc., multiple languages
- Network: GSM / WCDMA / LTE-FDD / TDD-LTE
North American version:
GSM: EGS850/DCS1800/PCS1900
WCDMA: B1/B2/B4/B5
FDD:B1/B2/B3/B4/B5/B7/B12/B13/B20/B17/B28A&B/B66/B71
Eurasian version：
GSM: 850/900/1800/1900
WCDMA: B1/B2/B5/B8
FDD:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A&B
TDD: B40/B41
- Display: 3.97 incell IPS High-definition Screen, 480x800 RGB, PPI 236
- Touchscreen: Support, Capacitive touch screen. High sensitivity, Drop resistance.
- Camera: 8MP+16MP or 8MP+20MP
- Memory: 6GB+128GB or 4GB+64GB
- Memory Card: Not supported
- Battery capacity: Built-in lithium-ion polymer battery, 2350 mAh, Not removable
- Charging capacity: 1.5A fast charging
Bluetooth: Supports Bluetooth 5.0 dual mode
WLAN: Support WIFI Dual-band (2.4/5GHz) single stream 802.11 ac/a/b/g/n, Supports Wi-Fi HotSpot 2.0
GPS: Support GPS/Glonass/Beidou/Galileo/QZSS
FM Radio: Yes, 65-108MHz with 50kHz step, Through earphone antenna
NFC: Support, Optional
Other Features:
Receiver: Support, High quality receiver, together with speaker.
Motor: Yes
Speaker: High fidelity cavity BOX speaker
MIC: Yes
G-Sensor: Yes
Proximity sensor: Yes
Light sensor: Yes
E-Compass: No
Gyro Sensor: No
Keypads: T9 Keypads
Charging jack: Yes, Type-C
headphone jack: Yes, Type-C transfer 3.5mm interface(CTIA)
USB: Type-C, USB 2.0
OTG: Yes
SYSTEM AND APP:
- Deep modification system based on Android 11 system, extensively modified to adapt to keyboard phones
- No browser, no internet connection
- No games
- Disable video playback
- USB download hardware protection
- BootRAM startup restrictions
- Call recording
- Yiddish input method
- Phone App (for Android keypad phones)
- Contacts App (for Android keypad phones)
- Text MMS/SMS (for Android keypad phones)
- Camera (for Android keypad phones)
- Music player (for Android keypad phones)
- Recorder (for Android keypad phones)
- Gallery (for Android keypad phones)
- File manager (for Android keypad phones)
- Alarm clock (for Android keypad phones)
- Zmanim
- Notes
- Hebrew calendar
- Halachic Times (prayer times)
- E-book recommended by Rabbi (Siddur/Yesod/Tehillim/שניים מקרא ואחד תרגום)
- Encryption call (under development)
MT6761 Processor:
The MT6761, with integrated Bluetooth, FM, WLAN and GPS modules, is a highly integrated baseband platform that includes a modem and application processing subsystem to enable LTE/LTE-A and C2K smartphone applications. The chip integrates an ARM Cortex-A53 operating system up to 2.0GHz and a powerful multi-standard video codec. In addition, a wide set of interfaces to connect peripherals include interfaces with cameras, touch screen displays and MMC/SD cards.
The MT6761 also contains wireless communication devices, including WLAN, Bluetooth and GPS. With the integration of four advanced radio technologies, the MT6761 provides the industry's best and most convenient connectivity solutions.
MT6761 platform comprehensive features:
- Quad-core high performance ARM® Cortex-A53 MP Core TM operating up to 2.0GHz;
- LPDDR3 up to 4GB (single channel with 32-bit data bus width);
- LPDDR4X up to 4GB (dual channel 16-bit data bus width);
- Memory clock to LPDDR 3-1866 or LPDDR4X-3200;
- LTE Cat 7 (300Mps);
- Embedded connectivity systems including WLAN/BT/FM/GPS;
- Resolution up to HD+ 20:9 (1,600*720) ；
- ISP supports 21MP@30fps;
- SW dual cam 13+8MP@30fps/16+8 MP@24fps
- Supports HEVC 1080p @ 30fps decoder and H.264 1080p @ 30fps encoder.
- Bluetooth:
▪ Supports Bluetooth 5 dual mode for 4x the range, 2x the speed and 8x the broadcasting message capacity
▪ Supports BT/Wi-Fi/LTE coexistence
▪ Supports 7 BT links and 16 BLE links
▪ Supports Wideband speech
▪ Supports secure connection with AES128 and ECC256
▪ Support Adaptive Frequency Hopping with built-in channel assessment method
- WLAN:
▪ Support WIFI Dual-band (2.4/5GHz) single stream 802.11 ac/a/b/g/n
▪ Security: WFA WPA/WPA2 personal
▪ Supports Wi-Fi Direct (WFA P-2-P standard) and Wi-Fi Miracast (Wi-Fi Display)
▪ Supports Wi-Fi HotSpot 2.0
- GPS: Support GPS/Glonass/Beidou/Galileo/QZSS tri-band reception concurrently
▪ GPS/Galileo only (GPS only)
▪ GPS/Galileo - GLONASS (G+G)
▪ GPS/Beidou (G+B)
▪ GPS/GLONASS/Beidou (G+G+B)
▪ GPS/Galileo/GLONASS (G+G+G)
▪ GPS/Galileo/GLONASS/Beidou (G+G+G+B)
▪ Supports SBAS (Satellite-Based Augmentation Systems):WAAS/MSAS/EGNOS/GAGAN
