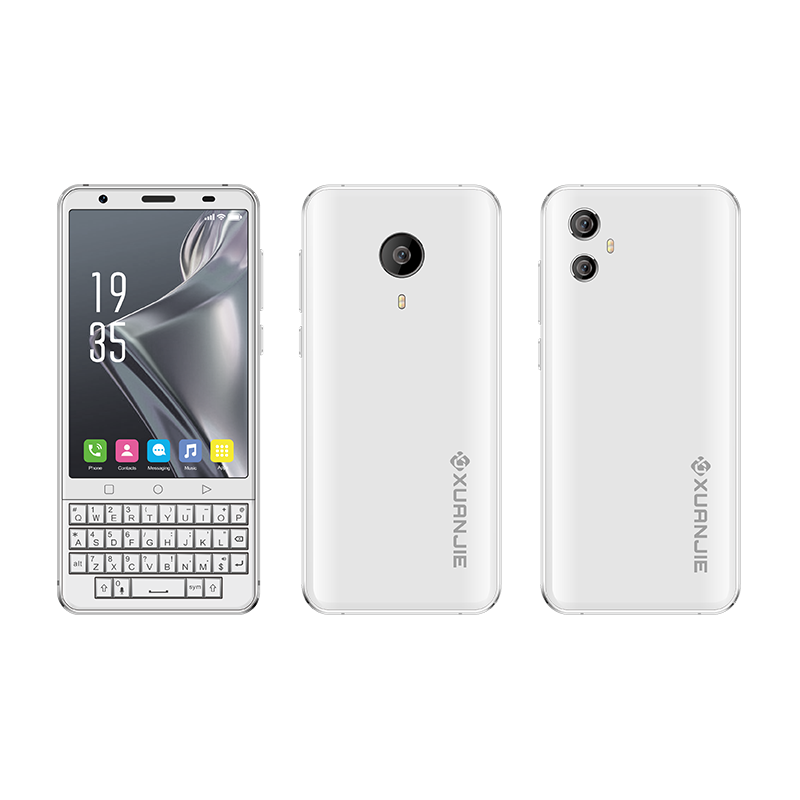

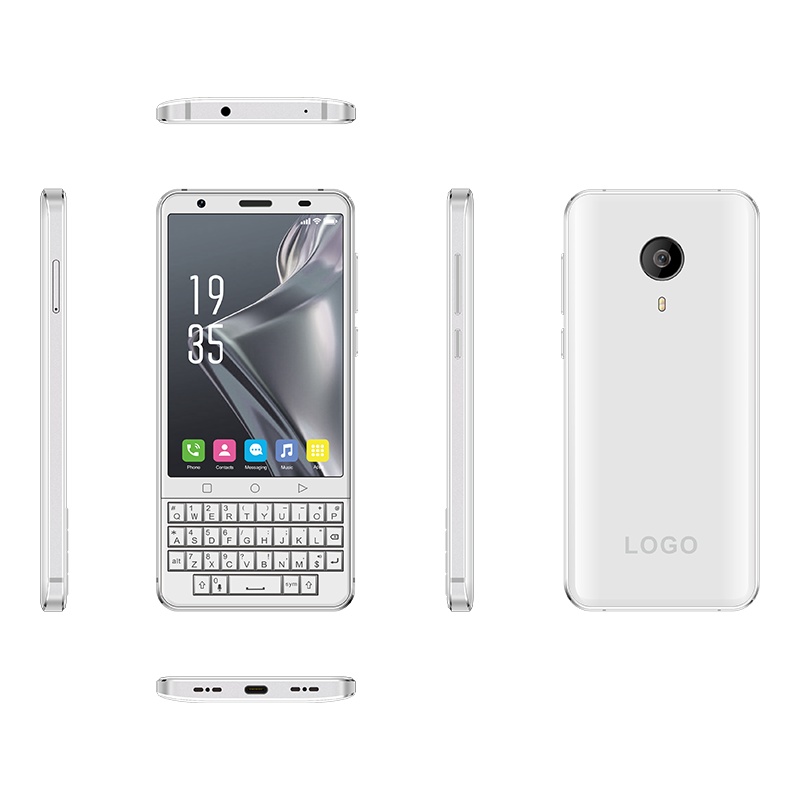

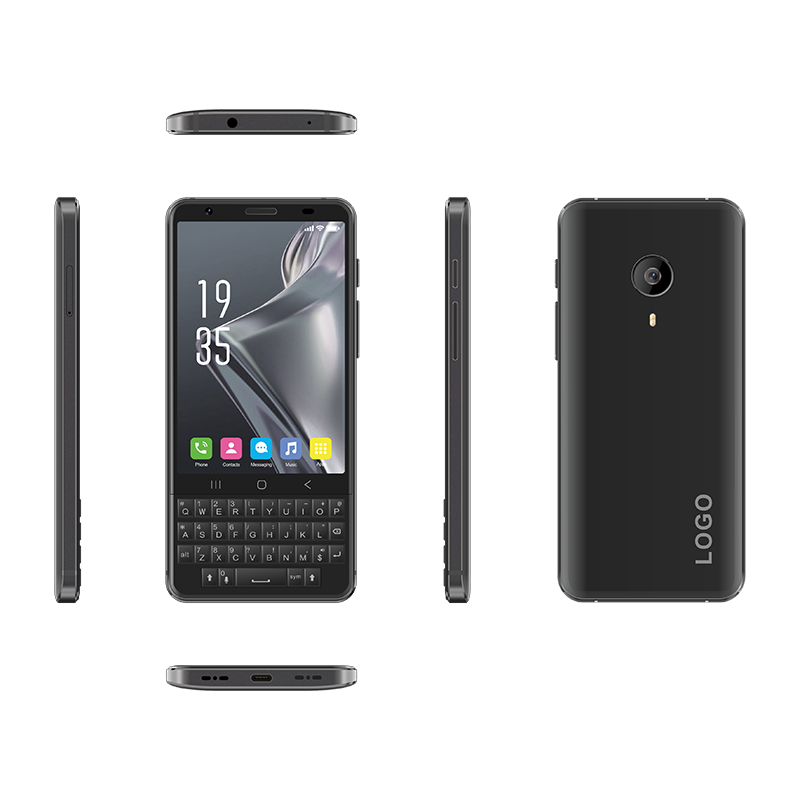

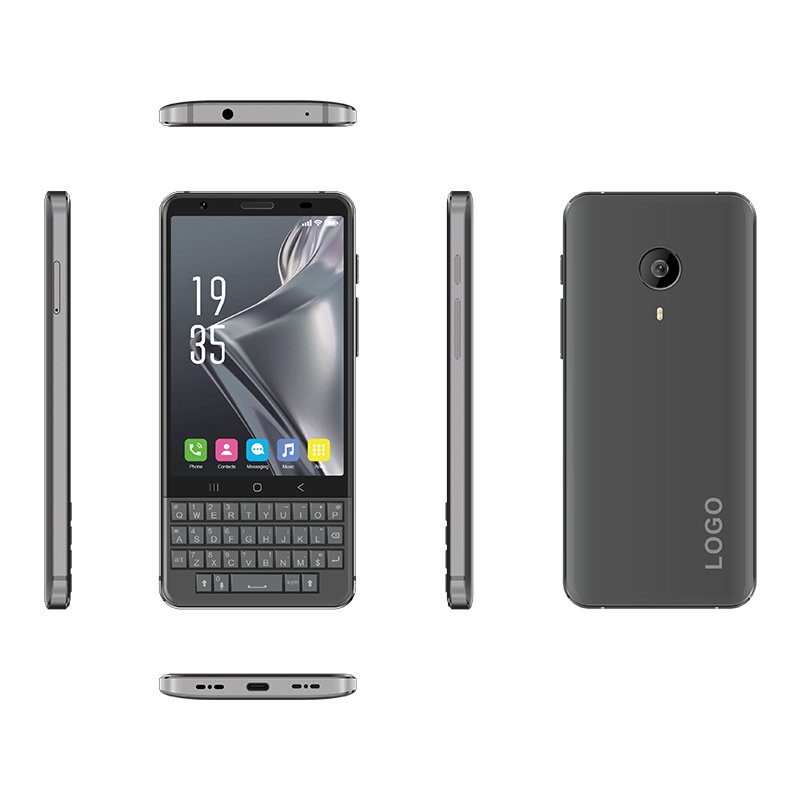

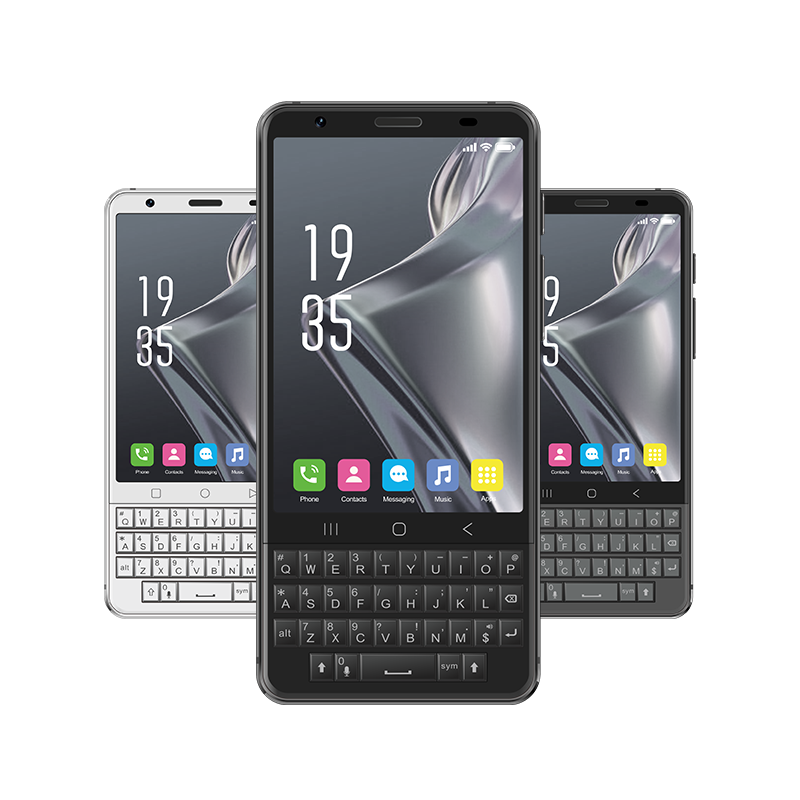

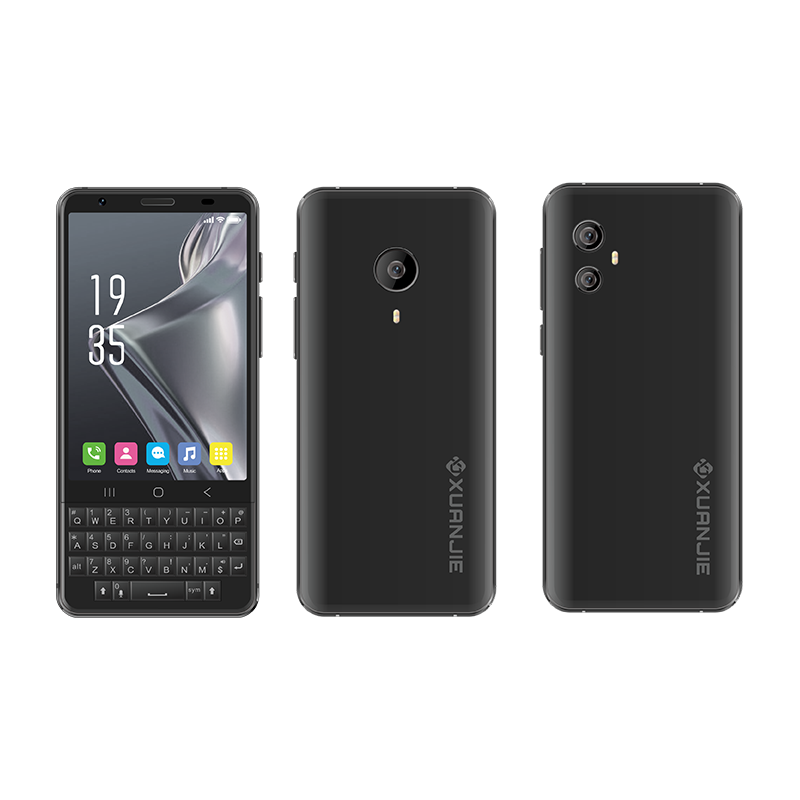

[ODM] Q450 4.4 Inch HD Touchscreen Dual SIM 3G/4G Smartphone with Octa Core CPU 4/6GB RAM and 64/128GB ROM WIFI EU

Short Description:

Detail ItemSpecifications1. General Feature Processor*CPUHelio P35 (MT6765), Qua...


  • Product size: 152mm*71.5mm / 9.6mm
  • Product thickness: 9.6mm
  • Product weight:: 230g
  • Colour: Black
  • Screen size: 4.4 inch IPS
  • Screen resolution: 1280 x 720 RGB(PPI 333)
  • Memory: 6GB+128GB/4GB+64GB
  • Camera: 8MP+13MP or 8MP+16MP or 8MP+20MP
  • Battery capacity: 2550mAh
  • Certification: FCC, CE, etc., support certification in various countries
  • Custom Mode: OEM / ODM
  • Mode Number: Q450
Download as PDF

Product Detail

Product Tags


Detail ItemSpecifications






1. General Feature
◇ Processor
*CPUHelio P35 (MT6765), Quad-core
4xCortex-A53 up to 2.3Ghz/4xCortex-A53 up to 1.8Ghz

GPUIMG GE8300, 680MHZ
◇ Platform
*Operating systemAndroid 11
*UI InterfaceCustom icon
*LanguageEnglish, German, French, Spanish, Hebrew, etc., multiple languages
◇ RF Specification
*ModeGSM / WCDMA / LTE-FDD
*American versionGSM: EGS850/DCS1800
WCDMA: B5
FDD:2/3/4/5/7/12/13/17/66/71
TDD:38/39/40/41
*Eurasian versionGSM: 850/900/1800/1900
WCDMA: B1/B2/B4/B5
FDD:1/3/5/7/8/20/28a&b
TDD:38/39/40/41
*SIM card slot2 Card slot

2. Phone Specification (Hardware)
◇ Display
*Main display dimensions4.4 inch IPS
*Main display technologyTFT
*Main display resolution720 x 1280 RGB
*Main display PPI333
◇ Back Camera
*Pixel20MP
*Camera technologyCMOS
*Auto FocusYes
*Flash lightYes
◇ Front Camera
*Pixel8MP
*Camera technologyCMOS
*Auto FocusN/A
*Flash lightN/A
◇ Storage
*EMCP4GB+64GB or 6GB+128GB
*Extended StorageNot Supported
*Max memory card sizeNot Supported
◇ USB
*USB revisionUSB2.0
*USB chargingYes
*OTGYes
*System I/O connectorType-C
◇ Bluetooth
*Bluetooth revisionVer 5.0
◇ FM
*FM RadioYes.
*FM AntennaThrough headphone cable
◇ WLAN
*WLAN WLAN 2.4G/5G 802.11 a/b/g/n/ac
*WIFI hotspotYes
◇ GPS
*GPSYes, GPS/Glonass/Beidou/Galileo
*AGPSYes
◇ Sensor
*G-SensorYes
*Proximity sensorYes
*Light  sensorYes
*E-CompassYes
*Gyro SensorN/A
◇ NFC
*Operating modeOptional, Default None
*NFC antennaOptional
*NFC Application scenariosN/A
◇ Battery
*Battery technologyHigh-capacity lithium-ion battery
*Battery capacity 4.4V 2550mah
*Charging currentMax 1.5A
*Charging limit voltage4.4V
◇ Keypad / Button / Switch / RGB LED
*Power buttonYes, Together with end key
*Volume keysYes, Side buttons
*Keypadsqwerty Keypads
*Keypad Back-light colorWhite  lamp
*

◇ Physical Interface
*Audio jackYes, Type-C transfer 3.5mm interface(CTIA)
*Charging jackType-C
*MICYes
*SpeakerBOX Speaker
*MotorYes
*ReceiverYes.Together with Speaker

Product hardware specifications:

- CPU: Helio P35 (MT6765), Octa-core

   4xCortex-A53 up to 2.3Ghz/4xCortex-A53 up to 1.8Ghz

- GPU: IMG GE8300, 680MHz

- Android system: Android 11

- Language: English, German, French, Spanish, Hebrew, etc., multiple languages

- Network: GSM / WCDMA / LTE-FDD / TDD-LTE

North American version:

GSM: EGS850/DCS1800/PCS1900

WCDMA: B1/B2/B4/B5

FDD:B1/B2/B3/B4/B5/B7/B12/B13/B20/B17/B28A&B/B66/B71

Eurasian version：

GSM: 850/900/1800/1900

WCDMA: B1/B2/B5/B8

FDD:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A&B

TDD: B40/B41

- Display: 4.4 inch IPS High-definition Screen, 720x1280 RGB, PPI 333

- Touchscreen: Support,  Capacitive touch screen. High sensitivity, Drop resistance.

- Camera:  8MP+16MP or 8MP+20MP

- Memory: 6GB+128GB or 4GB+64GB

- Memory Card: Not supported

- Battery capacity: Built-in lithium-ion polymer battery, 2150 mAh, Not removable

- Charging capacity: 1.5A fast charging

Bluetooth: Supports Bluetooth 5.0 dual mode

WLAN: Support WIFI Dual-band (2.4/5GHz) single stream 802.11 ac/a/b/g/n, Supports Wi-Fi HotSpot 2.0

GPS: Support GPS/Glonass/Beidou/Galileo/QZSS

FM Radio: Yes, 65-108MHz with 50kHz step, Through earphone antenna

NFC: Support, Optional


Other Features:

Receiver: Support, High quality receiver, together with speaker.

Motor: Yes

Speaker: High fidelity cavity BOX speaker

MIC: Yes

G-Sensor: Yes

Proximity sensor: Yes

Light  sensor: Yes

E-Compass: No

Gyro Sensor: No

Keypads: T9 Keypads

Charging jack: Yes, Type-C

headphone jack: Yes, Type-C transfer 3.5mm interface(CTIA)

USB: Type-C, USB 2.0

OTG: Yes



SYSTEM AND APP:

- Deep modification system based on Android 11 system, extensively modified to adapt to keyboard phones

- No browser, no internet connection

- No games

- Accept system and App customized development

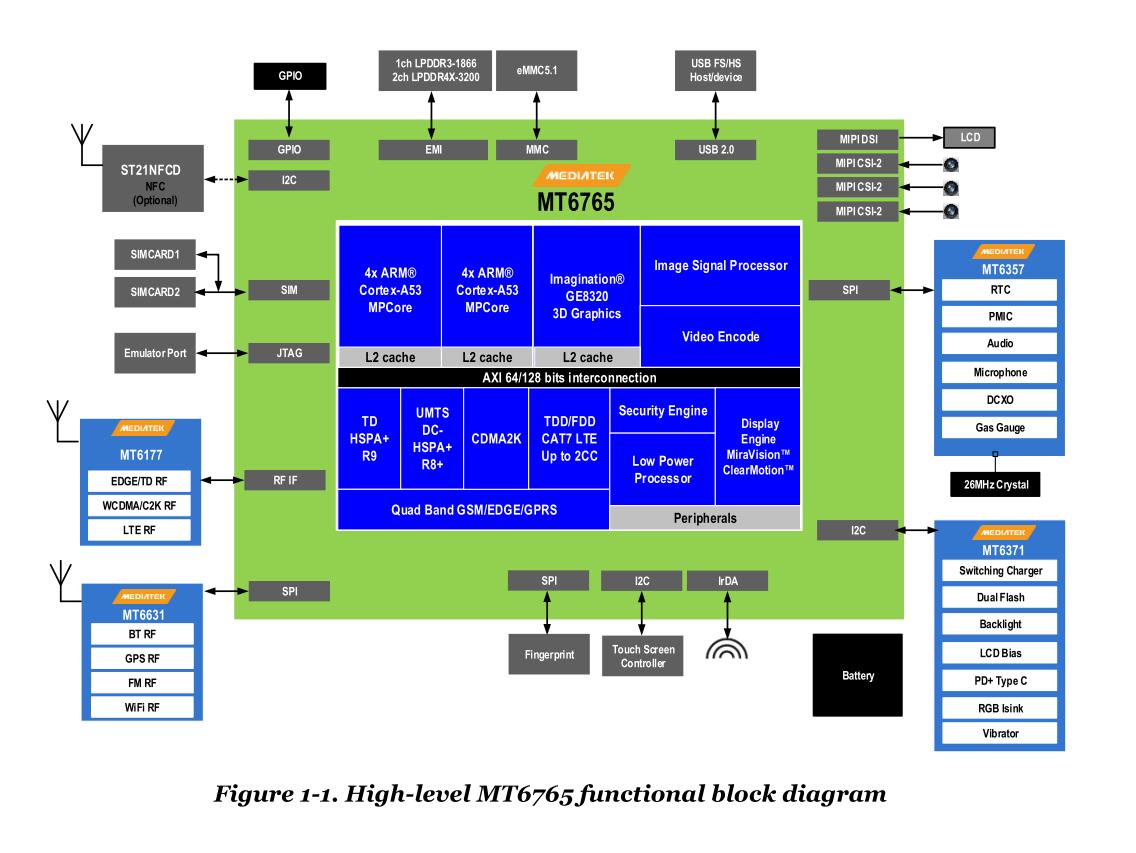

MT6765 Processor:


The Mediatek Helio P35 MTK6765 is a mainstream ARM SoC for smartphones. It integrates eight ARM Cortex-A53 cores (big.LITTLE) in two clusters. The four performance cores run at up to 2.3 GHz. The integrated graphics card is the PowerVR GE8320, which runs at up to 680 MHz. The integrated memory controller supports LPDDR4x at 1500 MHz or 933 MHz LPDDR3.


With integrated Bluetooth, FM, WLAN and GPS modules, the MT6765 is a highly integrated baseband platform including modem and application processing subsystems, enabling LTE/LTE-A and C2K smartphone applications. The chip integrates an ARM Cortex-A53 operating system up to 2.3GHz and a powerful multi-standard video codec. In addition, a wide set of interfaces for connecting peripherals include interfaces to cameras, touchscreen displays and MMC/SD cards.


The application processor is an Octa-core ARM Cortex-A53 MPCoreTM with a neon engine, providing the necessary processing power to support the latest OpenOS and its demanding applications. Such as web browsing, email, GPS navigation and games. All of this is on a high-resolution touchscreen display with graphics enhancements for 2D and 3D graphics acceleration.


MT6765 platform comprehensive features:


- CPU：4xCortex-A53 up to 2.3Ghz/4xCortex-A53 up to 1.8Ghz

- Graphics I:：IMG GE8320 Up to 680Mhz

- Memory：1xLP3 933MHz, up to 4GB/2xLP4x 1600MHz, up to 6GB/eMMC5.1

- Camera：25MP @ 30fps w/ ZSD/13MP + 13MP @ 30fps (LP4X)/MIPI Lane : 4+4+4 / 4+4+2+2/HW Dual cam

- Video Dec.：1080p 30fps H.264/H.265

- Video Enc.：1080p 30fps H.264

- Display：FHD+ (2400x1080)

- Modem：Cat-7, L+L

- Connectivit：MT6631(+11.ac +BT5.0 +Galileo）

- Bluetooth: Supports Bluetooth 5 dual mode for 4x the range, 2x the speed and 8x the broadcasting message capacity

- WLAN: Support WIFI Dual-band (2.4/5GHz) single stream 802.11 ac/a/b/g/n

- GPS: Support GPS/Glonass/Beidou/Galileo/QZSS tri-band reception concurrently

- FM：65-108MHz with 50kHz step
